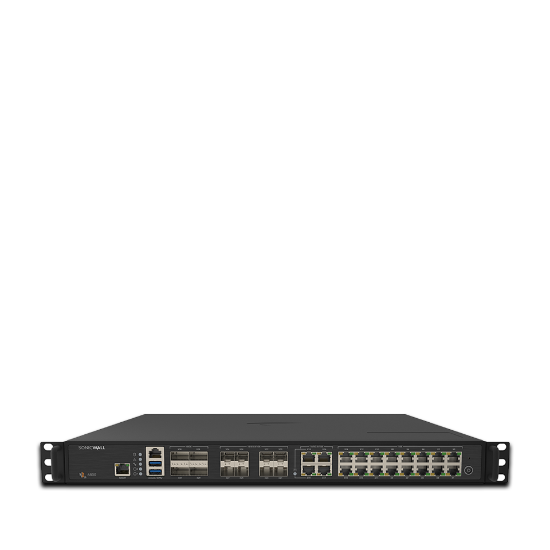

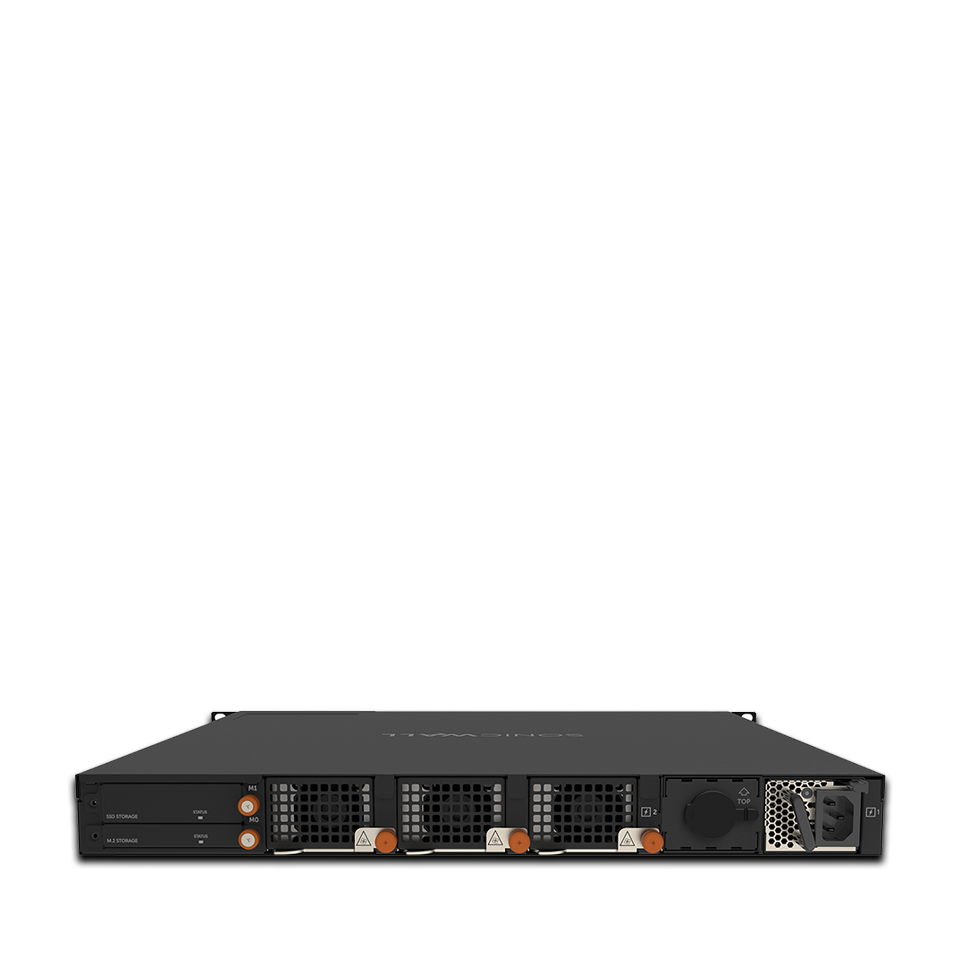

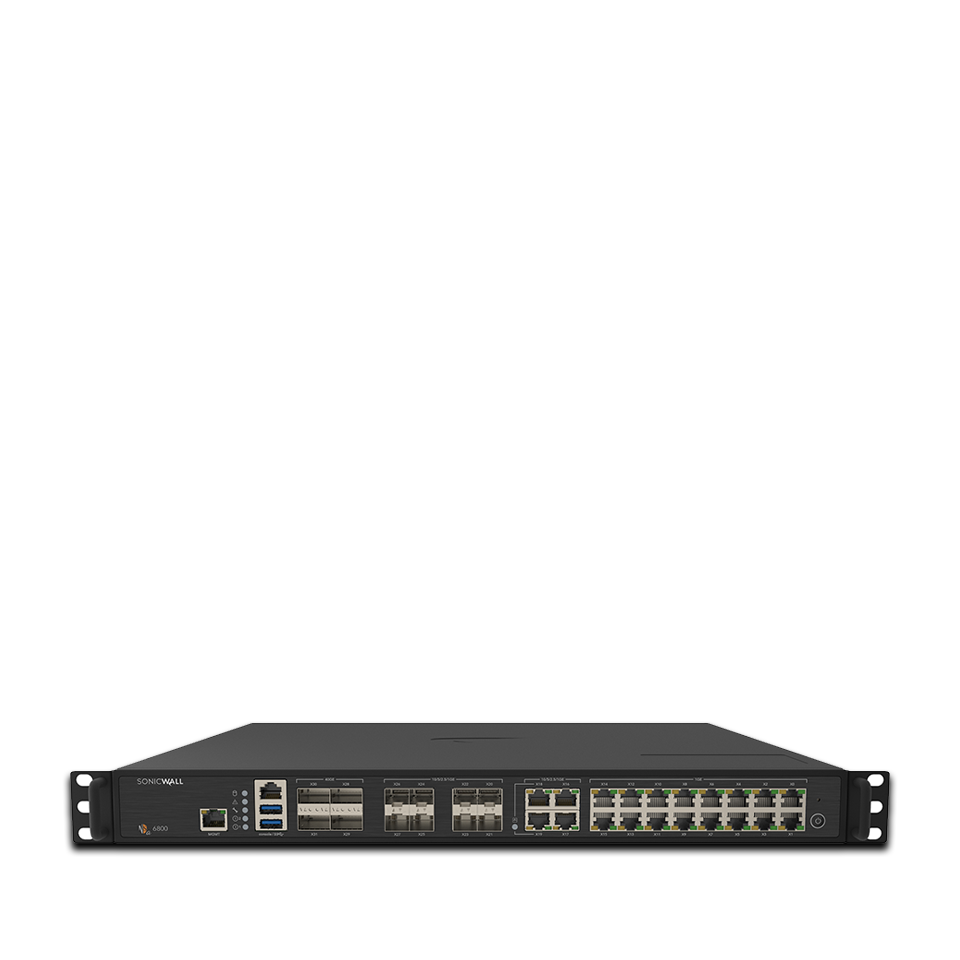

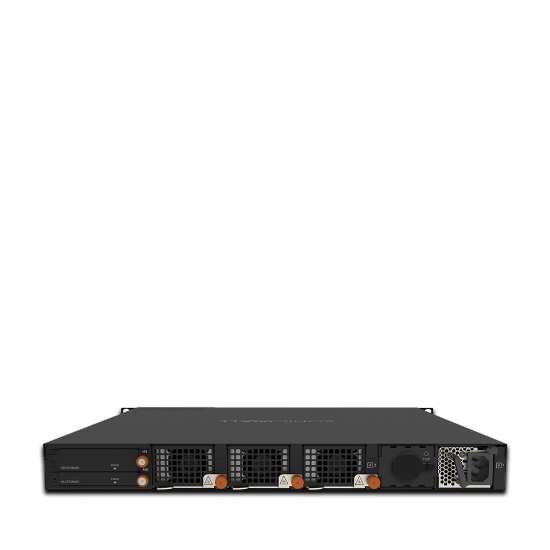

SonicWall NSa 6800 Secure Upgrade Appliance Appliance only (SonicProtect)

SonicWall NSa 6800 hardware with no subscription and must be used for SonicProtect customers only
SKU: 03-SSC-8011
£24,673.96
£18,317.95
(not including discount)
Firewall General
Operating system SonicOS 8.0
Interfaces 4x 40G QSFP, 4 x 10/5/2.5/1G, 8 x 10/5/2.5/1G SFP/SFP+, 16 x 1GbE, 2x USB (type-A)
Expansion (TB) 1
Storage (GB) 512
VLAN Interfaces 512
SAML Single Sign-On Users 70000
Access points supported (maximum) 512
Firewall/VPN Performance
Firewall inspection throughput 55 Gbps
Threat Prevention throughput 40 Gbps
Application inspection throughput 40 Gbps
IPS throughput 40 Gbps
Anti-malware inspection throughput 40 Gbps
TLS/SSL decryption and inspection throughput (DPI SSL) 10.5 Gbps
IPSec VPN throughput 27 Gbps
Connections per second 280000
Maximum SPI connections 20 000 000
Maximum DPI connections 15 000 000
Maximum TLS connections 1 500 000
VPN
Site-to-site tunnels  6000
SSL VPN licenses (max) 2 (1500)
IPSec VPN clients (max) 2000 (6000)
Encryption/Authentication AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN RIP, OSPF, BGP
Certificate support Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
VPN features Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported Microsoft® Windows 10 and Windows 11
NetExtender Microsoft® Windows 10 and Windows 11, Linux
Mobile Connect Apple® iOS, Mac OS X, Google® Android™
Security Services (APSS or suitable subscription required)
Deep Packet Inspection services Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, TLS Decryption
Content Filtering Service (CFS) Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid
Comprehensive Anti-Spam Service Supported
Application Visualization Yes
Application Control  Yes
Capture Advanced Threat Protection Yes
Networking
IP address assignment SLDAP (multiple domains), XAUTH/RADIUS, TACACS+, SAML SSO1, Radius accounting NTLM, internal
user database, 2FA, Terminal Services, Citrix, Common Access Card (CAC)
NAT modes 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
Authentication LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local user database 3200
VoIP Full H323-v1-5, SIP
Standards TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications pending IPv6/USGv6
High availability Active/Passive with stateful synchronization
Hardware
Form factor 1U Rack Mountable
Power supply (W) 450
Maximum power consumption (W) 201.7
Input power 100-240 VAC, 50-60 Hz
Total heat dissipation 461.32 BTU
Dimensions 43 x 46 x 4.5 (cm)
Shipping 69.5 x 59.5 x 21 (cm)
Weight 7.4 kg
WEEE weight 9.3 kg
Shipping weight 13.2 kg
Major regulatory FCC Class A, ICES Class A, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class A, KCC/MSIP, BSMI, MTCTE/TEC, CB
