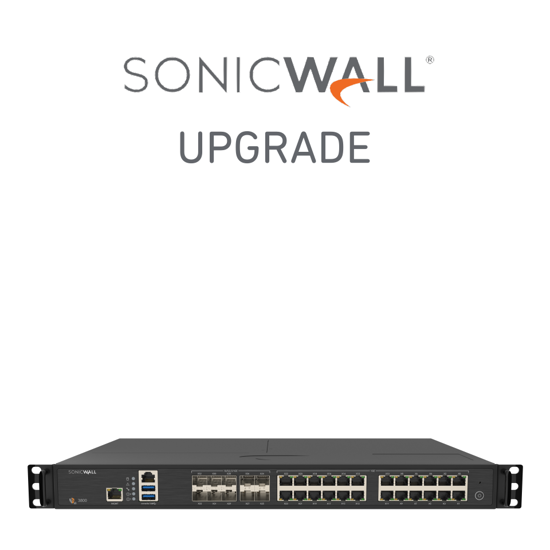

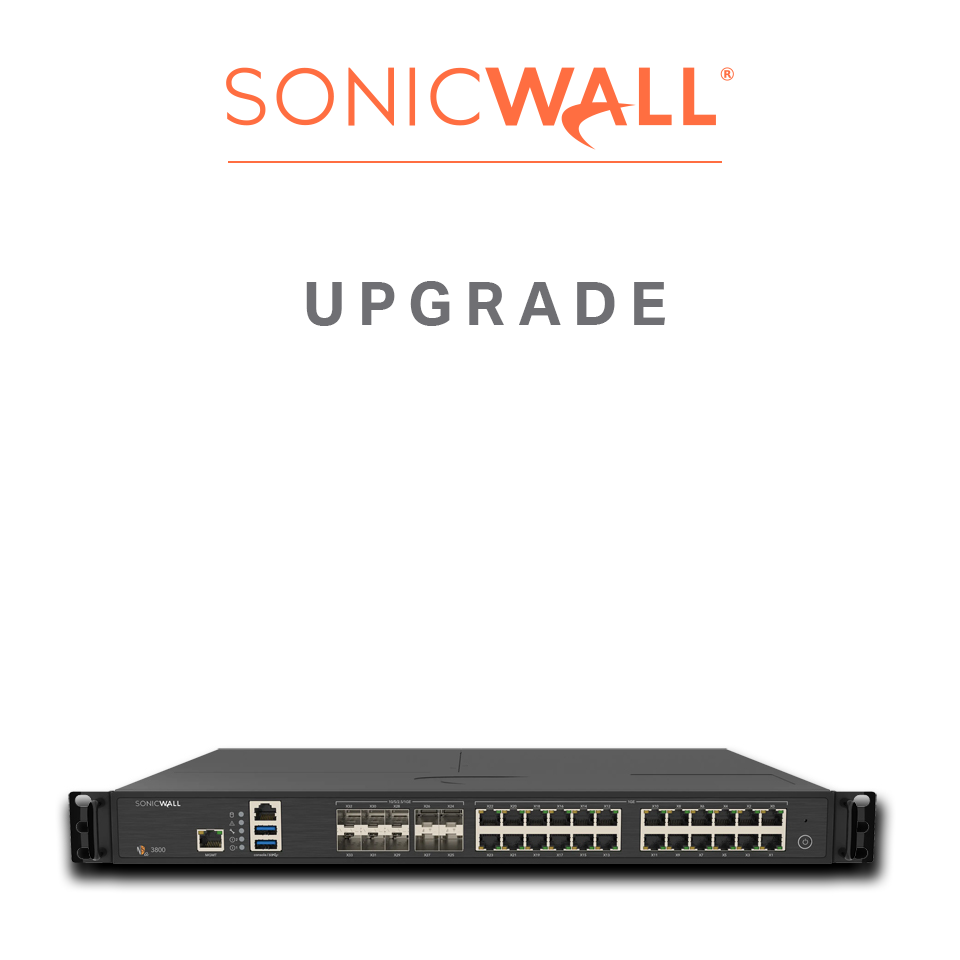

Picture of SonicWall NSa 3800 Secure Upgrade Appliance only (SonicProtect)

SonicWall NSa 3800 Secure Upgrade Appliance only (SonicProtect)

SonicWall NSa 3800 hardware with no subscription and must be used for SonicProtect customers only
SKU: 03-SSC-5827
£3,823.23

SonicWall latest mid-range next-gen firewalls, Network Security Appliance (NSa) 3800 offer medium and large enterprises industry-leading threat prevention performance at the lowest total cost of ownership in their class.

The 3800 is the cornerstone of the threat protection solution that includes simplified centralised firewall management, Zero Trust enablement, flexible licensing with an option of managed firewall services, and an embedded cyber warranty for risk mitigation. The Gen 8 firewalls deliver comprehensive security features such as intrusion prevention, VPN, application control, malware analysis, URL filtering, DNS Security, Geo-IP and Bot-net services, protecting the perimeter from advanced threats without becoming a bottleneck.

Licensing

This is the base SonicWall NSa 3800 Appliance for SoncProtect customers ONLY.

SonicWall NSa 3800 Next Generation Firewall Video:

Highlights:
  1. 1U rack mounted
  2. Multi-gigabit threat and malware analysis throughput
  3. 16 x 1 GbE interfaces
  4. 3 x 10 GbE interfaces
  5. Superior TLS performance (sessions and throughput)
  6. Best-in-class price-performance
  7. Expandable storage
  8. Wi-Fi 6 firewall management
  9. Secure SD-WAN capability
  10. Enterprise internet edge ready
  11. TLS 1.3 support
  12. Cloud Secure Edge connector support
  13. Powered by SonicWall Capture Labs threat research team
  14. SonicWall switch, SonicWave access point and Capture Client integration

The Gen 8 NSa Series runs on SonicOS 8, a new operating system that delivers a modern user interface, intuitive workflows and user-first design principles. SonicOS 8 provides multiple features designed to facilitate enterpriselevel workflows. It offers easy policy configuration, zero-touch deployment and flexible management — all of which allow enterprises to improve both their security and operational efficiency. NSa 3800 support advanced networking features, such as SD-WAN, dynamic routing, layer 4-7 high availability and high-speed VPN functionality. In addition to integrating firewall and switch capabilities, the appliance provides a single-pane-of-glass interface to manage both switches and access points.



Download

 SonicWall NSa Generation 8 Datasheet

 Gen 8 Architecture Datasheet

Firewall General
Operating system SonicOS 8.0
Interfaces 24x1GbE, 10x10G SFP+, 2 USB 3.0, 1 Console, 1 Management port
Expansion (GB) 512
Storage (GB) 128
VLAN Interfaces 256
SAML Single Sign-On Users 40000
Access points supported (maximum) 512
Firewall/VPN Performance
Firewall inspection throughput 12 Gbps
Threat Prevention throughput 8 Gbps
Application inspection throughput 9 Gbps
IPS throughput 8 Gbps
Anti-malware inspection throughput 8 Gbps
TLS/SSL decryption and inspection throughput (DPI SSL) 3 Gbps
IPSec VPN throughput 8 Gbps
Connections per second 90000
Maximum SPI connections 3000000
Maximum DPI connections 1200000
Maximum TLS connections 300000
VPN
Site-to-site tunnels  3000
SSL VPN licenses (max) 2 (500)
IPSec VPN clients (max) 50 (1000)
Encryption/Authentication AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN RIP, OSPF, BGP
Certificate support Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to-SonicWall VPN, SCEP
VPN features Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported Microsoft® Windows 10 and Windows 11
NetExtender Microsoft® Windows 10 and Windows 11, Linux
Mobile Connect Apple® iOS, Mac OS X, Google® Android™
Security Services
Deep Packet Inspection services Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, TLS Decryption
Content Filtering Service (CFS) Reputation-based URL filtering, HTTP URL, HTTPS IP, keyword and content scanning, comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid
Comprehensive Anti-Spam Service Supported
Application Visualization Yes
Application Control  Yes
Capture Advanced Threat Protection Yes
Networking
IP address assignment SLDAP (multiple domains), XAUTH/RADIUS, TACACS+, SAML SSO1, Radius accounting NTLM, internal
user database, 2FA, Terminal Services, Citrix, Common Access Card (CAC)
NAT modes 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1p
Authentication LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local user database 1000
VoIP Full H323-v1-5, SIP
Standards TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Certifications pending IPv6/USGv6
High availability Active/Passive with stateful synchronization
Hardware
Form factor 1U Rack Mountable
Power supply (W) 150
Maximum power consumption (W) 102.3
Input power 100-240 VAC, 50-60 Hz
Total heat dissipation 341 BTU
Dimensions 43 x 32.5 x 4.5 (cm)
Shipping 57.5 x 47.5 x 18.5(cm)
Weight 4.6 kg
WEEE weight 4.8 kg
Shipping weight 7.2 kg
Major regulatory FCC Class A, ICES Class A, CE (EMC, LVD, RoHS), UL, cUL, Mexico DGN Notice by UL, ANATEL, WEEE, REACH, SCIP, RCM, MIC Terminal, VCCI Class A, KCC/MSIP, BSMI, MTCTE/TEC, CB
